C35 AWD Step-Thru | 5000W Dual Motor & 52V 35Ah Fat Tire eBike

Full Suspension Step-Thru AWD Fat Tire eBike
4 interest-free payments of $424.75 with
Afterpay
Klarna
Affirm
Regular price $1,699.00
Sale price $1,699.00 Regular price
Unit price
Save $0.00
Pre-Order Early Bird $1,699.00 $1,599.00 Save $100

Your $100 pre-order discount is applied automatically at checkout — no code needed. Pre-order pricing ends when Batch 1 ships on September 7th.

PRE-ORDER BATCH 1 — ONLY 132 UNITS, SAVE $100

Lock in $1,599 before launch. Ships from our California warehouse starting September 7th.

00

days

days

:
00

hours

hrs

:
00

minutes

mins

:
00

seconds

secs

In Stock
Black
Camouflage
Frequently Bought Together Get 50% Off On Add-Ons
Ask a question

Ask a Question

* Required fields

Size guide Share

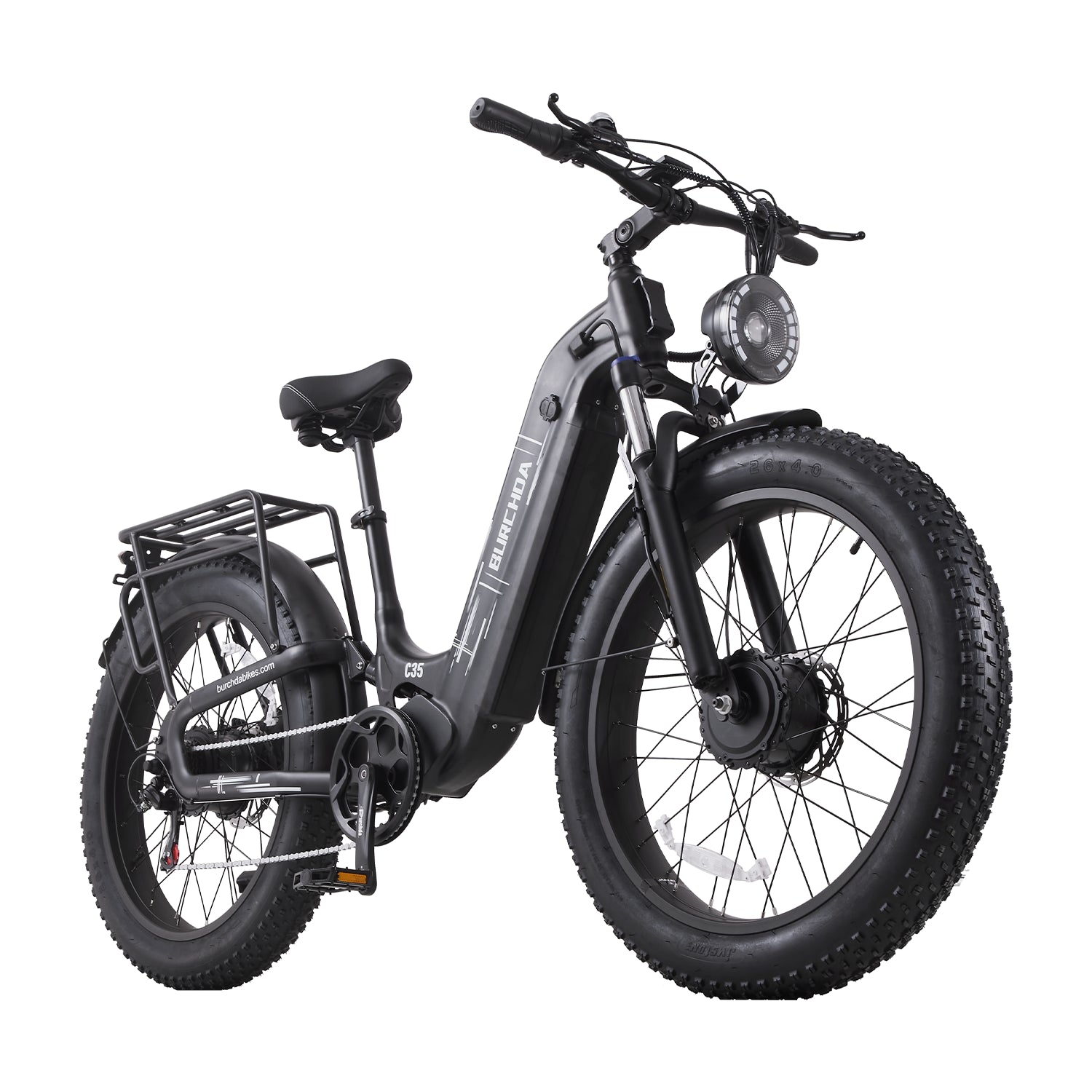

Burchda C35 step-through e-bike, angled front view with the removable 52V 35Ah battery on the down tube

C35 AWD Step-Thru | 5000W Dual Motor & 52V 35Ah Fat Tire eBike

  • 20" Stand-Over Step Through, Not Over
  • 210 Nm Torque Effortless Climbing
  • 35° Climbing Angle Steep Hill Mastery
  • Full Suspension 180mm Front · 70mm Rear
  • Hydraulic Brakes 180mm Rotors, Front & Rear
  • AWD Drive Modes Front · Rear · All-Wheel

Every 5000W fat tire e-bike asks the same thing first: swing your leg up and over. The C35 doesn't ask. A 20" stand-over height lets you step straight through the frame and sit down — then 5000W peak dual-motor AWD, 210 Nm of torque, and full suspension take over. Nothing given up at the curb. Nothing given up on the trail.

Step Through, Not Over

The C35's carbon steel step-through frame drops the top tube to a 20" stand-over — the lowest in the Burchda lineup. Mount and dismount with both feet flat on the ground: at a stoplight, on a loose gravel shoulder, on a sloped driveway, with a loaded rack behind you. If a bad knee, a stiff hip, or a frame that was simply too tall has been keeping you off two wheels, this is the one that gets you back on. An angle-adjustable stem dials in your reach, from upright cruiser to forward trail posture.

One Bike, Two Riders

A 33" – 39" saddle range fits riders from 5'6" to 6'5" — a six-inch spread most e-bikes don't come close to. Drop the post for your partner, raise it back for yourself, and share one bike instead of buying two. Step-through geometry means neither of you has to fight the frame to get on.

5000W AWD, 210 Nm, 35° Grades

Front and rear hub motors — 1500W rated each, 5000W peak — drive both wheels with 210 Nm of combined torque (105 Nm front, 105 Nm rear). That's genuine all-wheel traction on sand, wet grass, mud, snow, and loose climbs, up to a 35° grade and a 40 MPH top speed, where single-motor bikes spin out and stall.

The Biggest Battery We Build — Up to 100 Miles

A 52V 35Ah (1820Wh) removable lithium battery — the largest capacity in the Burchda lineup — delivers up to 100 miles of pedal-assist range. Pull the pack out to charge it indoors, drop it back in, and go.

Carries 500 lbs. Soaks Up the Rest.

A 500 lbs payload capacity and a 150 lbs rear rack mean bigger riders, a week of gear, tools, coolers, or feed sacks — all on one bike. 180mm of hydraulic front travel and 70mm at the rear, plus 26" × 4.0" fat tires, flatten ruts, roots, and washboard. Hydraulic disc brakes with 180mm rotors bring the whole load back down a steep descent.

It Arrives Ready

LED headlight, taillight with integrated brake light, full fenders, rear rack, mirrors, and a tire pump are all in the box. A 3.5" color LCD, cruise control, half-twist throttle, Shimano 7-speed drivetrain, and an IP65 rating round it out — so the bike that takes the trail on Sunday is the same one that runs to the hardware store on Saturday.

Built for trails, farm roads, beaches, campgrounds, and the ride into town. Free US shipping, a 2-Year Limited Warranty, and fast dispatch from our California warehouse.

Rider standing over the low step-through frame of a Burchda C35 with both feet flat on the ground on a brick street.

Full Power. No Leg Swing.

Every other AWD bike we build has a top tube you swing a leg over. On a slope, with a loaded rack, or at the end of a long day, that swing is the moment a lot of riders decide not to go.

The C35 takes it out. The frame drops to a 20" stand-over — the lowest we've ever built — so you step through and sit down, both feet on the ground the whole time. Same at every stoplight, every gate, every trailhead.

A step-through frame usually means a smaller, slower, lighter-duty bike. Not this one. 26" × 4.0" fat tires. 5000W peak dual-motor AWD. 500 lbs of payload. You give up the leg swing and nothing else.

  • Stand-Over: 20"
  • Max Payload: 500 lbs

5000W Peak. Both Wheels Driving.

Front and rear hub motors — 1500W rated each, 5000W peak — put 210 Nm of combined torque down through both wheels. 105 Nm at the front, 105 Nm at the rear.

That's what pulls you up a 35° grade on loose gravel, out of wet grass, and across soft sand without spinning a wheel. Single-motor bikes break traction and stall on exactly this stuff. Top speed is 40 MPH.

A bike you step into has no business climbing like this. This one does.

  • Motor Torque: 210 Nm
  • Peak Power: 5000W

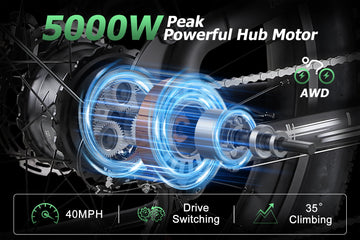

Diagram of the Burchda C35 hub motor: 5000W peak power, AWD, 40 MPH top speed and 35-degree climbing

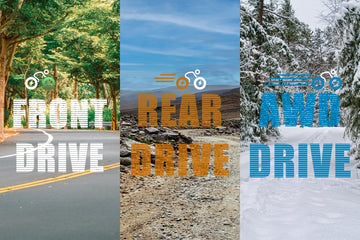

Burchda C35 three drive modes: front drive, rear drive and AWD across paved road, gravel and snow

Three Drive Modes. One Handlebar.

Switch between front, rear, and all-wheel drive as the ground changes — no stopping, no tools.

Front Drive — pavement and hardpack. One motor works, the other rests.

Rear Drive — climbing and loose surfaces. Power under your weight, where the traction is.

AWD — trails, sand, mud, snow, wet leaves, and anything steep. Both wheels pulling together.

Most riders leave it in AWD and forget about it. The other two are there for the days you'd rather not.

1820Wh — The Biggest Battery We Build

A single 52V 35Ah pack — 1820Wh, the largest capacity in the Burchda lineup — delivers up to 100 miles of pedal-assist range.

That capacity is what lets a bike rated for 500 lbs still reach 100 miles. It's one pack, built into the down tube, and it lifts out with a key.

Charge it on the bike, or carry it inside and charge it there. Going further than one pack takes you? A spare 52V 35Ah battery is available separately — the C35 runs one at a time, so you swap in the fresh pack and keep going.

  • Battery Capacity: 1820Wh
  • Max Range: 100 Miles

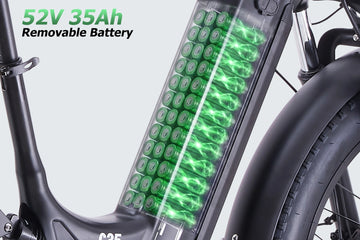

Cutaway view of the Burchda C35 52V 35Ah removable battery integrated into the step-through down tube
Rider standing beside a loaded Burchda C35 on a desert trail, rear rack carrying a cooler, bedroll and pannier bag.

Rated for 500 lbs

Rider plus cargo, up to 500 lbs. That's a 300 lb rider and 200 lbs of gear, or a 350 lb rider and a fully loaded rack — on a high-carbon steel frame built to take it, day after day.

The rear rack is included and rated for 150 lbs of that total: a cooler, a toolbox, feed sacks, or a week of camping gear. Front and rear fenders come on it too. And when the rack isn't enough, the C35 tows — the Burchda cargo trailer bolts to the rear axle and carries another 99 lbs behind you.

26" × 4.0" fat tires spread the load instead of sinking into it, and hydraulic disc brakes with 180mm rotors, front and rear, bring all of it back down a steep grade.

Cutting the top tube usually costs you capacity. Here it didn't.

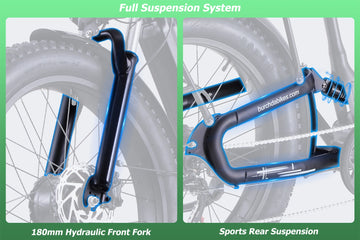

Diagram of the Burchda C35 full suspension system with 180mm hydraulic front fork and sports rear suspension

180mm Front. 70mm Rear.

A hydraulic fork with 180mm of travel up front, a 70mm shock at the rear, and 26" × 4.0" fat tires between them. Ruts, roots, gravel washboard, curb drops — the bike absorbs it instead of handing it up to you.

Step-through geometry sits you upright, and upright riding sends more of your weight straight down through the saddle rather than out onto your hands. That's exactly why the suspension earns its keep here — and why it's damped to work under a load, not just under an empty frame.

Front damping is adjustable: firm it up for pavement, open it up for trail.

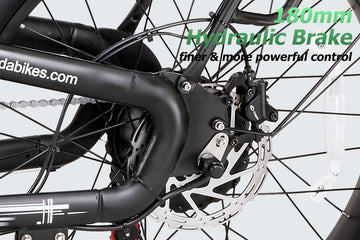

Close-up of the Burchda C35 180mm hydraulic disc brake caliper and rotor at the rear hub motor

180mm Rotors, Front and Rear

Hydraulic disc brakes on both wheels, with 180mm rotors. Hydraulic means the lever pressure reaches the pad unchanged — no cable stretch, no fade in the wet, no difference between the first stop of the day and the twentieth.

Bringing a bike rated for 500 lbs down a steep grade is a different job than stopping an empty one. These are sized for the loaded version.

Both levers cut motor power the moment you touch them. Whatever the throttle was doing, the brakes get the last word.

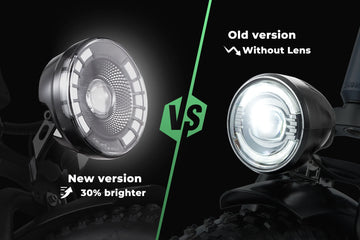

Comparison of the Burchda C35 lens LED headlight against the previous lens-free headlight design

Seen, and Seeing

A 600-lumen LED headlight with a focusing lens throws a defined beam down the trail instead of scattering it into the trees. You see the rut before you're in it, and you're not blinding whoever's coming the other way.

At the back, the taillight doubles as a brake light — squeeze a lever and it flares, so the car behind you knows you're slowing before you've actually slowed. An electric bell covers everything else.

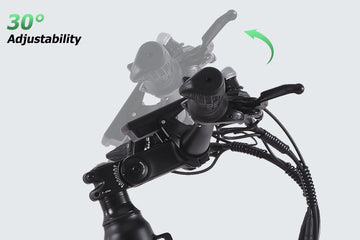

Burchda C35 electric bike featuring a 30-degree adjustable handlebar stem for customized ergonomic riding comfort.

Dial In Your Fit

The stem angle adjusts, so the bars go where you want them — upright and cruiser-like for the ride into town, or rolled forward for a planted trail posture. Same bike, two very different riding positions.

Pair that with the 33" – 39" saddle range and the fit window gets wide enough for two people in the same house. Drop the post, tip the bars, hand it over.

The saddle is wide and dual-spring damped — sized for the upright position a step-through frame puts you in, not for a racer's crouch.

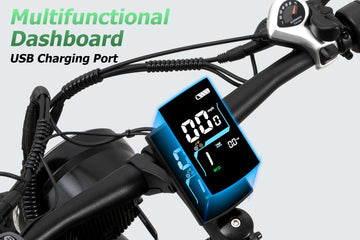

Burchda C35 multifunctional color LCD dashboard with USB charging port on the handlebar

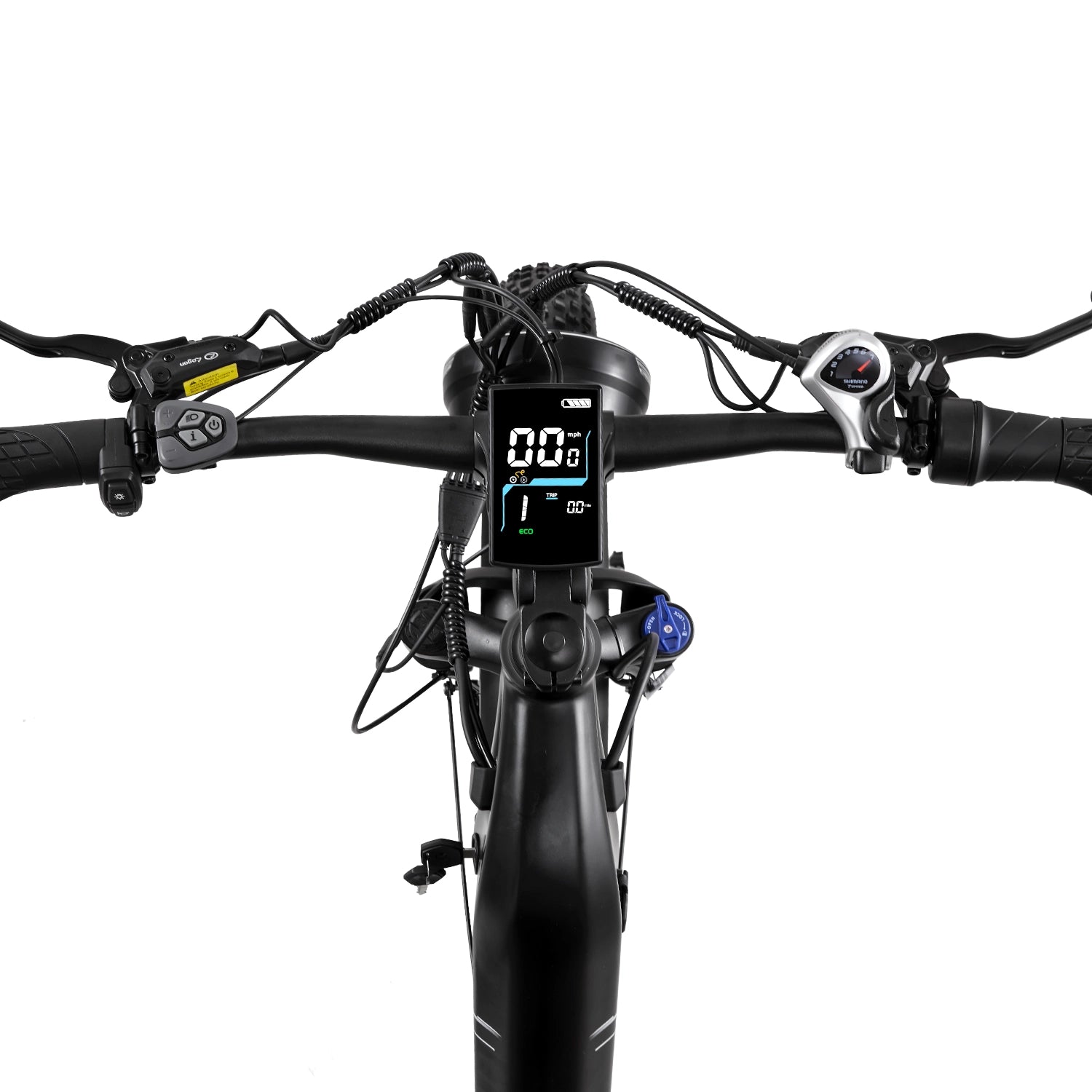

Everything on One Screen

A 3.5" color LCD reads out speed, PAS level, battery, trip and odometer. A USB port on the display keeps your phone charged off the main battery, so navigation doesn't die halfway through the ride.

Cruise control holds a set speed on long flats — and the half-twist throttle is right there when you want it back.

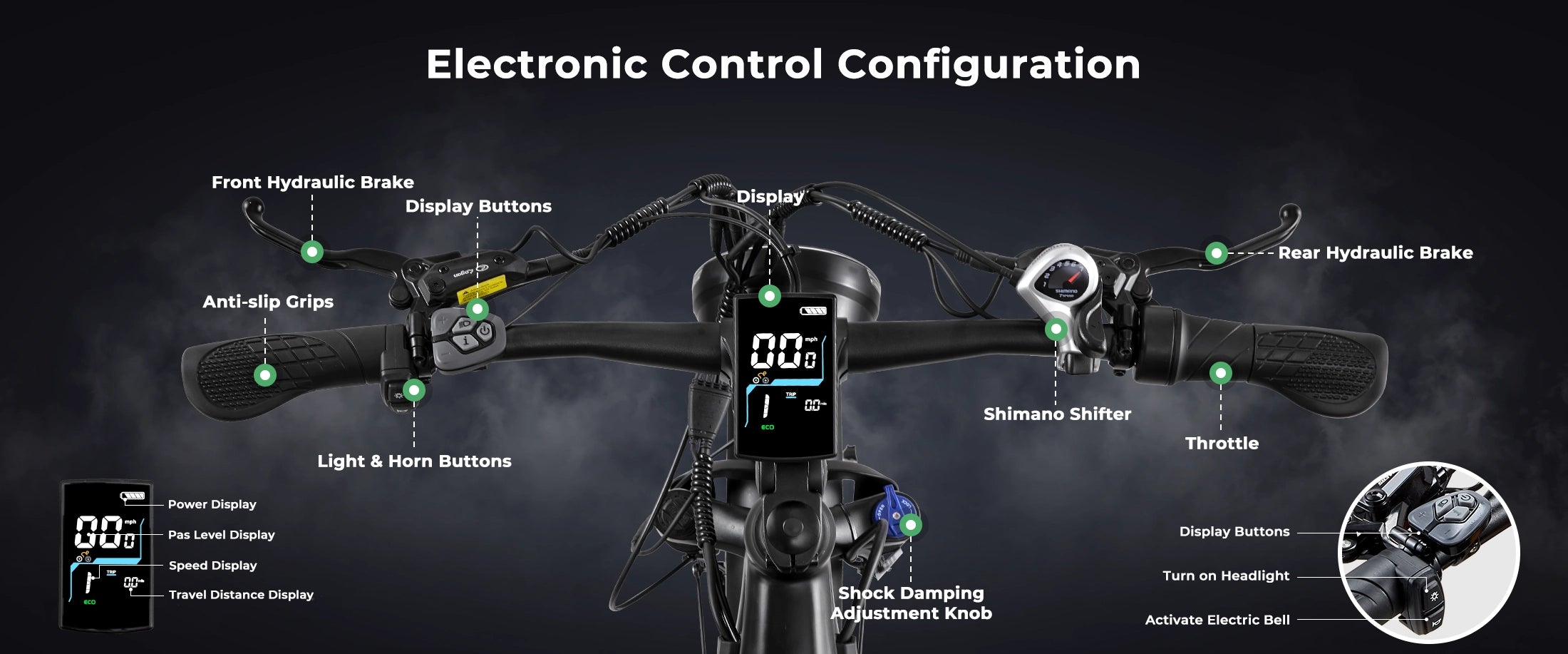

Electronic control configuration on the Burchda C35 ebike handlebar, displaying the central LCD screen, dual hydraulic brakes, Shimano shifter, and throttle.slider_item_8e9z9F

More About C35

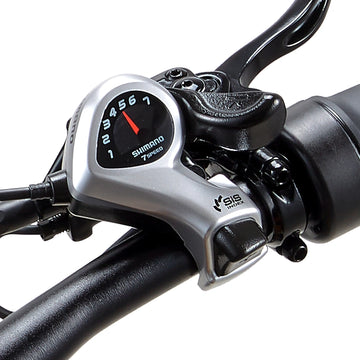

Close-up of the Shimano 7-speed index shifter on the Burchda C35 handlebar

Shimano 7-Speed Shifter

Index shifting with a thumb, a clear gear window on top — you always know where you are in the range.

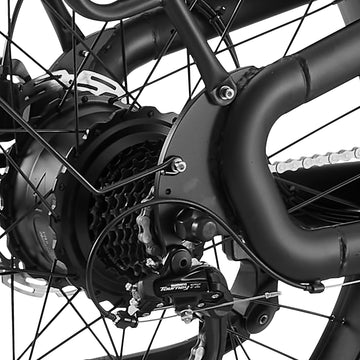

Close-up of the Burchda C35 rear hub motor with Shimano Tourney derailleur and 7-speed freewheel

Shimano Tourney TZ Derailleur

Proven, cheap to service, and stocked at every bike shop in the country. Nothing exotic to source when it needs a tune.

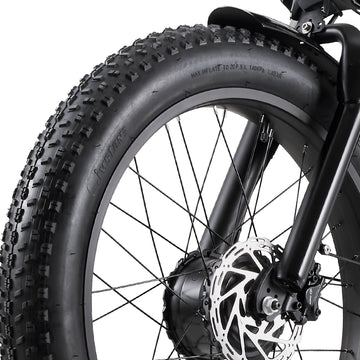

Close-up of the Burchda C35 front wheel with 26 x 4.0 fat tire, front hub motor and 180mm hydraulic disc brake

26" × 4.0" Fat Tires

Four inches of contact patch floats over sand, gravel, and loose dirt instead of cutting down into it.

Close-up of the Burchda C35 wide comfort saddle with dual suspension springs and seat post

Dual-Spring Comfort Saddle

Wide, padded, and sprung underneath — built for an upright seating position and long days.

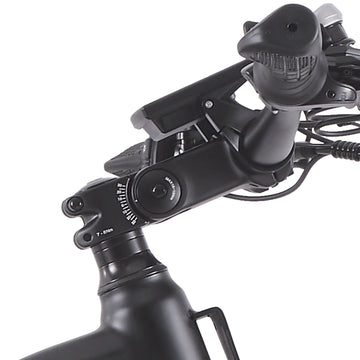

Close-up of the Burchda C35 angle-adjustable stem, used to tune handlebar reach and height

Angle-Adjustable Stem

Set the bar height and reach without buying parts. Change your mind next week and change it back.

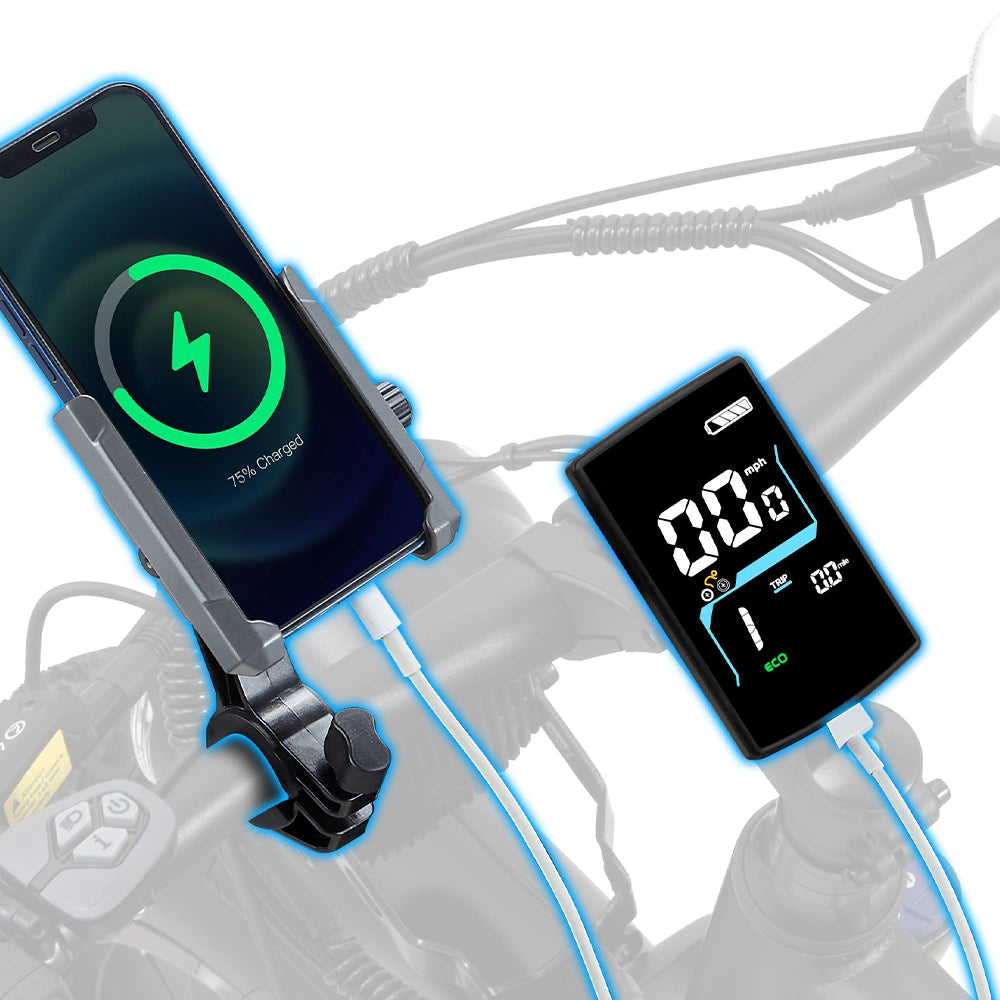

Burchda C35 color LCD display charging a phone mounted on the handlebar

USB Charging Port

Phone on the bars, cable to the display, powered off the main pack.

Why Burchda?

Burchda provides 2-year free bike diagnostic and maintenance services.

2-Year Warranty

Burchda provides 2-year free bike diagnostic and maintenance services.

Customer Favorite

Local Repairs, Covered

No Burchda shop nearby? Take it to any bike shop you trust — get it approved with us first and we cover warranty repairs.

Customer Service

Talk to a Human

Email support@burchdabikes.com and a person writes back. Call (888) 400-0374 anytime — after hours, our assistant takes it and the team picks it up.

Specification

General Info
Rider Height
5'6" - 6'5"
Min. Inseam
30"
Best For
Off-Road & Trails, Hills & Climbing, Heavy-Duty, Seniors & Easy Mounting
Ebike Class
Class 3
Top Speed
40 mph
Max Range
Up to 100 Miles (Pedal Assist)
Riding Modes
Pedal, Pedal Assist, Throttle, Cruise Control
Pedal Assist
5 Levels (PAS 1-5)
Throttle
Half-Twist Throttle
Max Climbing Angle
35°
Water Resistance
IP65
Max Payload
500 lbs
Frameset
Frame Material
Carbon Steel
Frame Type
Step-Through
Stand-Over Height
20"
Min Saddle Height
33"
Max Saddle Height
39"
Suspension
Full Suspension
Front Fork
Hydraulic Suspension Fork (Single-Crown)
Fork Travel
180mm
Fork Damping
Adjustable
Rear Shock
Multi-link Rear Suspension
Rear Shock Travel
70mm
Ebike System
Motor
5000W Peak Power Dual Hub Motors (Front & Rear 1500W Rated)
Drive System
Dual Motor (AWD)
Drive Modes
Front Drive / Rear Drive / AWD
Torque
210 Nm (Front & Rear 105Nm)
Battery
52V 35Ah (1820Wh) Lithium-Ion, Removable
Charging Time
11 Hours
Charger
100-240V, 52V 3A
Display
3.5" Color LCD with USB Charging Port
Cruise Control
Yes
Sensor
Cadence Sensor
Drivetrain & Components
Rear Derailleur
Shimano Tourney TZ, 7-Speed
Shifter
Shimano SIS Index, 7-Speed
Freewheel
Shimano 7-Speed
Tires
26" x 4.0" Fat Tires
Brakes
Dual Hydraulic Disc Brakes
Brake Rotor
180mm (Front & Rear)
Headlight
600 Lumen LED
Tail Light
Rear Warning / Brake Light
Horn
Electric Bell
Stem
Angle-Adjustable
Rear Rack
Included, 150 lbs Capacity
Fenders
Included (Front & Rear)
Dimensions & Weight
Product Size
76.9" x 27.6" x 42.5"
Package Size
64.5" × 12.6" × 32.3"
Product Weight
119 lbs
Package Weight
144 lbs

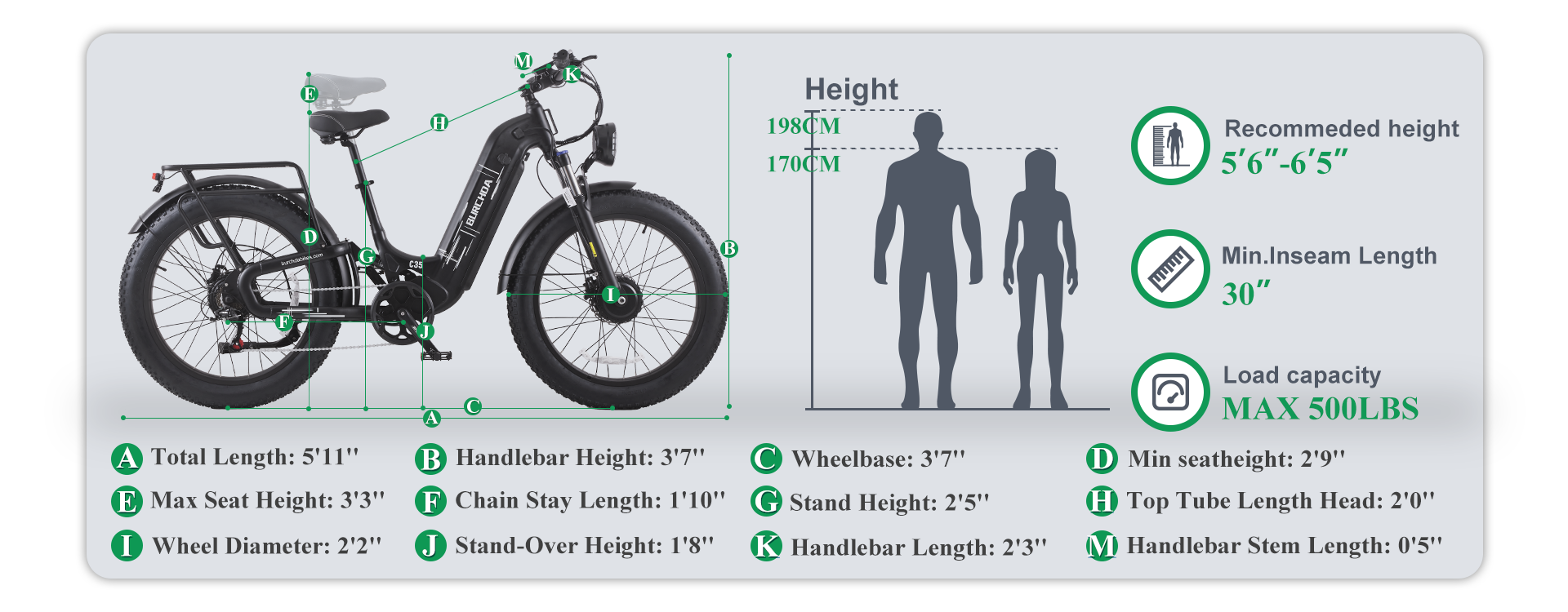

Burchda C35 frame geometry and rider height chart, fits riders 5'6" to 6'5" with 500 lbs load capacity

Size & Rider Height

PAS Speed & Range Comparison

PAS-1
8.3 mph
Up to 100 Miles
PAS-2
10.4 mph
Up to 80 Miles
PAS-3
15.3 mph
Up to 60 Miles
PAS-4
24.2 mph
Up to 50 Miles
PAS-5
28+ mph
Up to 40 Miles
Throttle-only range
Up to 40 Miles
1st gear throttle, flat road

Note: Range and speed vary with rider weight, terrain, tire pressure, temperature, wind, and how much you pedal. Figures are measured under test conditions and are not a guarantee.
